SMD Ceramic Resonator
SMD Ceramic Resonator
MHz Series SMD-2 pads

PartNumber 型号

FrequencyRange (MHz) 频率范围

Frequency Accuracy (25℃) 频率精度

Stability in Temperature

(-25~+80℃) 温度稳定度

Operating Temperature (℃) 工作温度

Aging For ten year 老化率(10年)

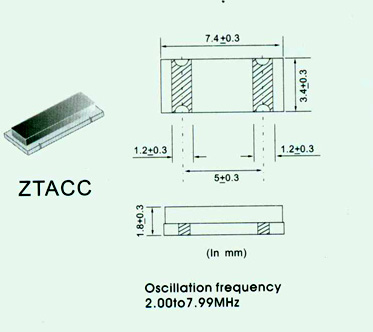

ZTACC…MG 2.00-7.99 - +0.5% - +0.3% -20~+80 - +0.3%

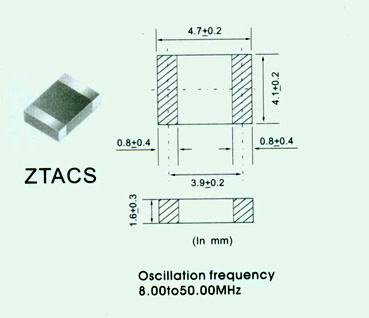

ZTACS…MT 8.00-13.00 - +0.5% - +0.4% -20~+80 - +0.3%
ZTACS…MX 13.00-50.00 - +0.5% - +0.3% -20~+80 - +0.3%

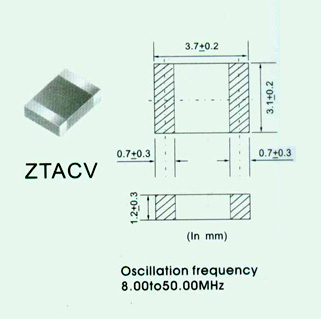

ZTACV…MT 8.00-13.00 - +0.5% - +0.3% -20~+80 - +0.3%
ZTACV…MX 13.00-50.00 - +0.5% - +0.3% -20~+80 - +0.3%
MHz Series SMD-2 pads

PartNumber 型号

FrequencyRange (MHz) 频率范围

Frequency Accuracy (25℃) 频率精度

Stability in Temperature

(-25~+80℃) 温度稳定度

Operating Temperature (℃) 工作温度

Aging For ten year 老化率(10年)
ZTACC…MG 2.00-7.99 - +0.5% - +0.3% -20~+80 - +0.3%
ZTACS…MT 8.00-13.00 - +0.5% - +0.4% -20~+80 - +0.3%
ZTACS…MX 13.00-50.00 - +0.5% - +0.3% -20~+80 - +0.3%
ZTACV…MT 8.00-13.00 - +0.5% - +0.3% -20~+80 - +0.3%
ZTACV…MX 13.00-50.00 - +0.5% - +0.3% -20~+80 - +0.3%
MHz Series 2 Pins

PartNumber 型号

FrequencyRange (MHz) 频率范围

Frequency Accuracy (25℃) 频率精度

Stability in Temperature

(-25~+80℃) 温度稳定度

Operating Temperature (℃) 工作温度

Aging For ten year 老化率(10年)

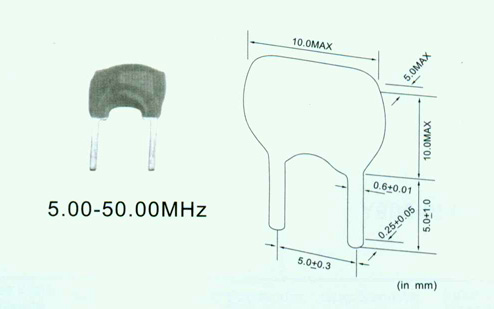

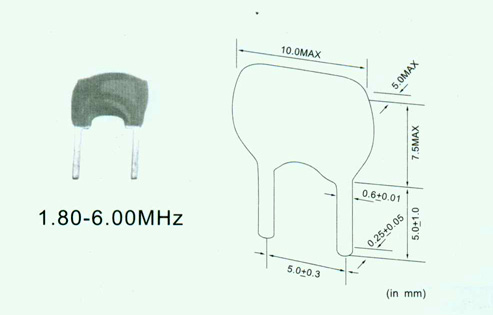

ZTA…MG 1.80-6.00 - +0.5% - +0.3% -20~+80 - +0.3%
ZTA…MT 5.00-12.00 - +0.5% - +0.3% -20~+80 - +0.3%
ZTA…MX 12.00-50.00 - +0.5% - +0.3% -20~+80 - +0.3%
MHz Series 3 pins

PartNumber 型号

FrequencyRange (MHz) 频率范围

Frequency Accuracy (25℃) 频率精度

Stability in Temperature

(-25~+80℃) 温度稳定度

Operating Temperature (℃) 工作温度

Aging For ten year 老化率(10年)

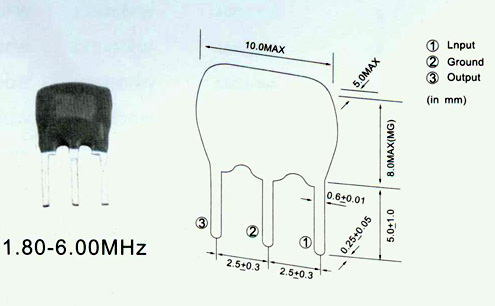

ZTT…MG 1.80-6.00 - +0.5% - +0.3% -20~+80 - +0.3%

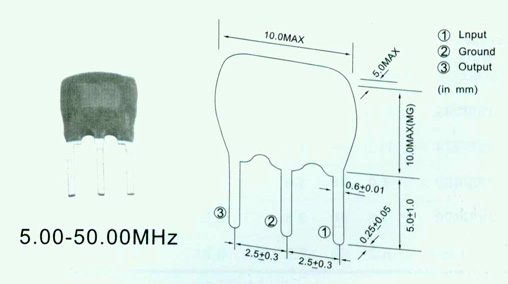

ZTT…MT 5.00-12.00 - +0.5% - +0.3% -20~+80 - +0.3%
ZTT…MX 12.00-50.00 - +0.5% - +0.3% -20~+80 - +0.3%
